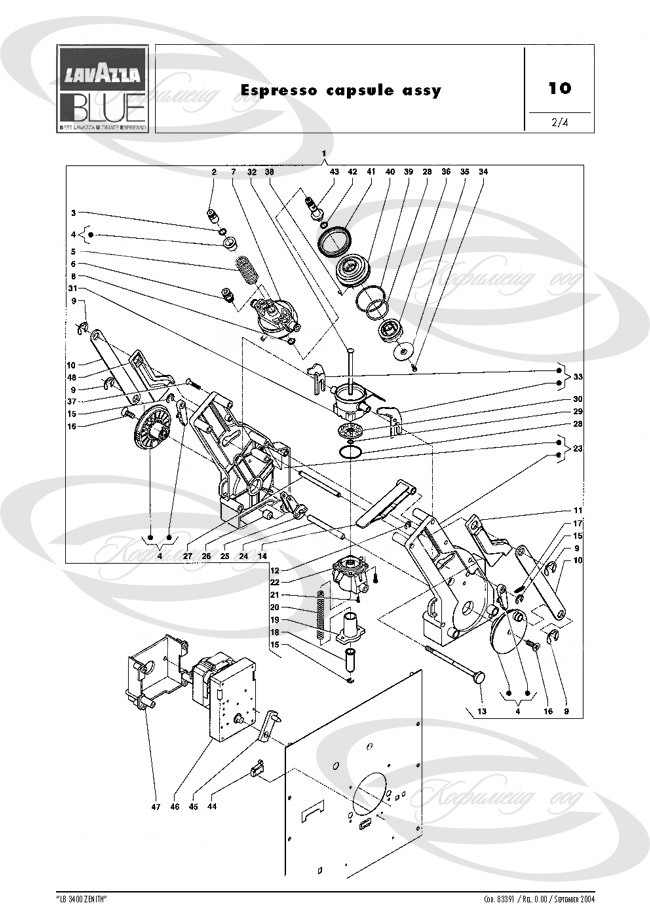

Luigi LAVAZZA SpA » LB 3400 ZENITH » Страница 10 – Пластм.група капсула, редуктор група капсула
| No | Каталожен номер | Описание |
|---|---|---|
| 1 | 10063093 | ESPRESSO CAPSULE ASSY (MF9) |
| 2 | 10063078=251087 | 5×1/8 QUICK COUPLING – FEMALE (MF9) |
| 3 | 094611 | О-пр. м-ч към група ZN |
| 4 | 10063081 | PLATE – HANDLE – LOCK ASSY (MF9) |
| 4 | 10063081 | PLATE – HANDLE – LOCK ASSY (MF9) |
| 4 | 10063081 | PLATE – HANDLE – LOCK ASSY (MF9) |
| 5 | 10063074 | Пружина връщане долно бутало |
| 6 | 10063077=251086 | 6×1/8 QUICK COUPLING – MALE (MF9) |
| 7 | 10063073 | UPPER CYLINDER (MF9) |
| 8 | 094594 | О-пр. щуцер плочка |
| 9 | 092717=098819 | FIXING COLLAR DIAM MM10 (MF9) |
| 9 | 092717=098819 | FIXING COLLAR DIAM MM10 (MF9) |
| 9 | 092717=098819 | FIXING COLLAR DIAM MM10 (MF9) |
| 9 | 092717=098819 | FIXING COLLAR DIAM MM10 (MF9) |
| 10 | 098565 | TRACE FOR PISTON COMMAND (MF9) |
| 10 | 098565 | TRACE FOR PISTON COMMAND (MF9) |
| 11 | 098572 | FRONT SLEDGE (MF9) |
| 12 | 091287 | OUTER FIXING COLLAR (MF9) |
| 13 | 10063094 | TIEROD WITH KNURLED NUT (MF9) |
| 14 | 098575 | OSCILLATING LEVER (MF9) |
| 15 | 098818 | ANNELLO ARRESTO DIAM. 4 (MF9) |
| 15 | 098818 | ANNELLO ARRESTO DIAM. 4 (MF9) |
| 15 | 098818 | ANNELLO ARRESTO DIAM. 4 (MF9) |
| 16 | 0V3889 | VITE 6×14 (MF9) |
| 16 | 0V3889 | VITE 6×14 (MF9) |
| 17 | 987839 | RETURN SPRING (MF9) |
| 18 | 098691 | LOWER PISTON GUIDE (MF9) |
| 19 | 10063088 | BOTTOM (MF9) |
| 20 | 098688 | Пружина връщане долно бутало |
| 21 | 097879 | NICKELPLATED SCREW (MF9) |
| 23 | 10063092= 251101 | RH-LH SUPPORT (MF9) |
| 23 | 10063092= 251101 | RH-LH SUPPORT (MF9) |
| 24 | 098693 | ROD CRANK BLOCKING (MF9) |
| 25 | 098574 | ROTATING LEVER (MF9) |
| 26 | 098692 | ROTATING LEVER ROLL (MF9) |
| 27 | 10063075 | HANDLE STOP PIN (MF9) |
| 28 | 10063080=251089 | O-RING – 29.3X3.6 UL (MF9) |
| 28 | 10063080=251089 | O-RING – 29.3X3.6 UL (MF9) |
| 29 | 090421 | „О-пр. бойлер/плочка Зануси |
| 30 | 10063084=10060283=10066941 | Долни игли група капсула Blue |
| 31 | 10063086 | BREWING CHAMBER (MF9) |
| 32 | 10063076 | LOWER PISTON EJECTOR (MF9) |
| 33 | 10063091 | RH-LH EJECTOR LEVER (MF9) |
| 34 | 0V1963 | S/S M3X10 SCREW (MF9) |
| 35 | 10063072 | UPPER FILTER (MF9) |
| 36 | 10063089 | INNER PISTON (MF9) |
| 37 | 250290 | SCREW 4.2X26 (MF9) |
| 38 | 10065247 | CAPSULE EJECTING PIN (MF9) |
| 39 | 10063120 | O-RING 4162 (MF9) |
| 40 | 10063087 | OUTER PISTON – D.52.5 (MF9) |
| 41 | 10063079 | LIP SEAL (MF9) |
| 42 | 096553 | „О-пръстен тапа блокче Колибри |
| 43 | 10063124 | PISTON ROD (MF9) |
| 44 | 096355 | Микрокл. група кафе,мех.захар Зануси |
| 45 | 098763 | CRANK WITH PIN (MF9) |
| 46 | 10063112 | COFFEE MOTOREDUCER (MF9) |
| 47 | 098566 | „Основа редуктор група |
| 48 | 098571 | REAR SLEDGE (MF9) |
